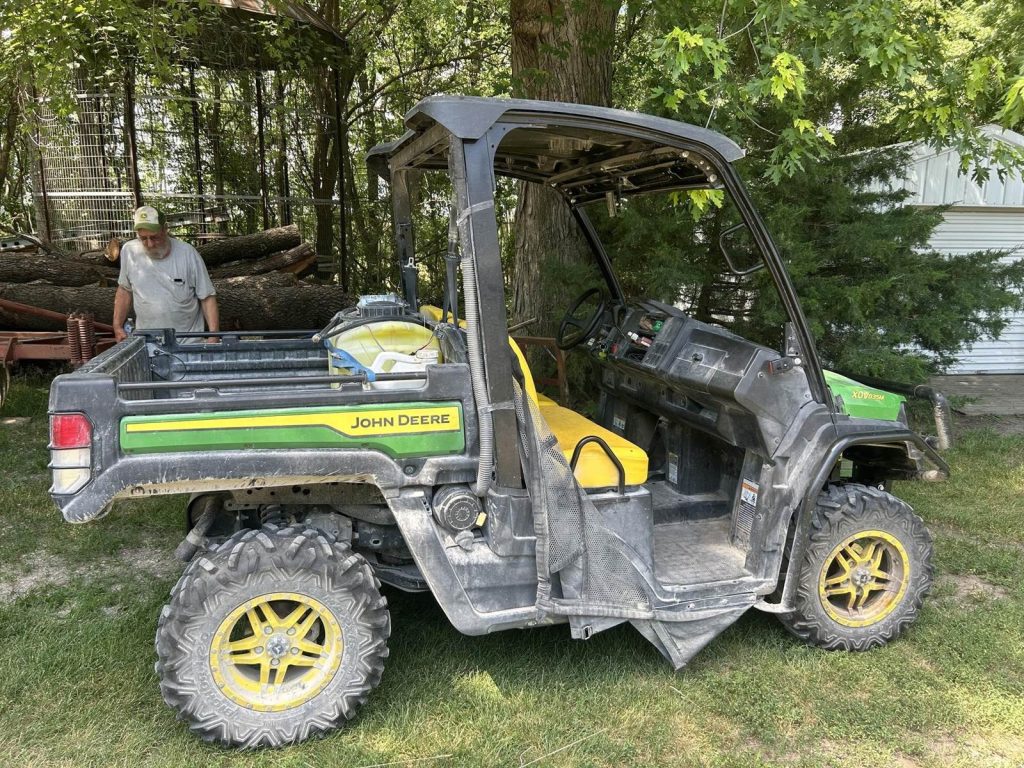

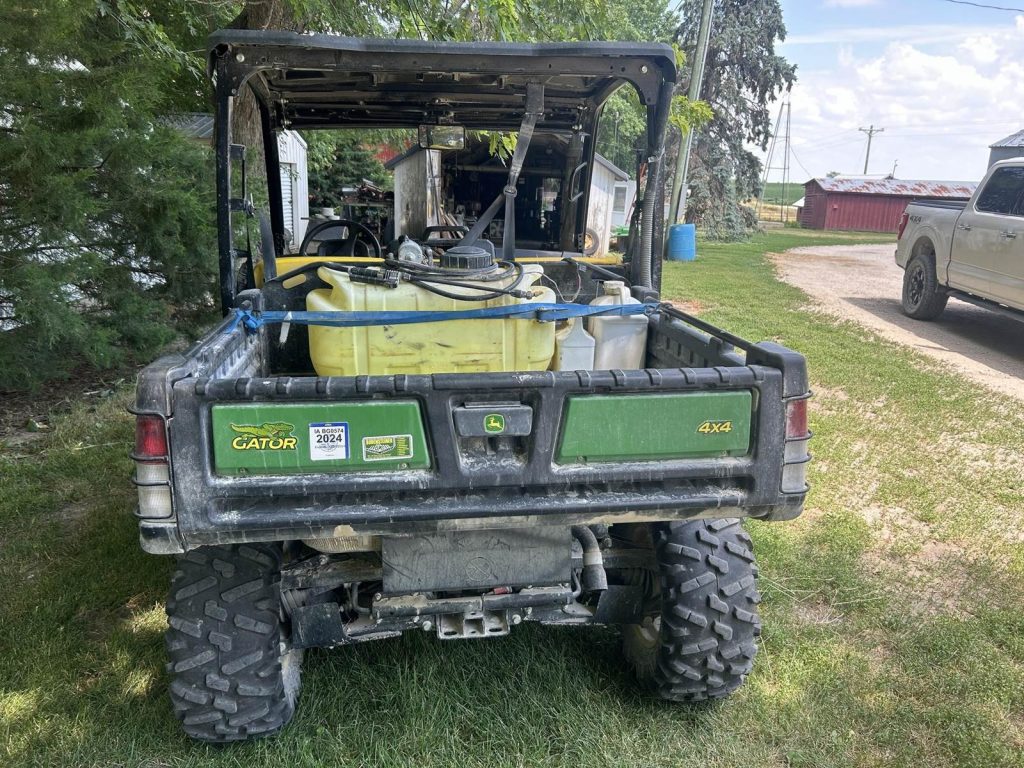

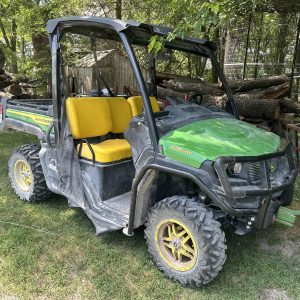

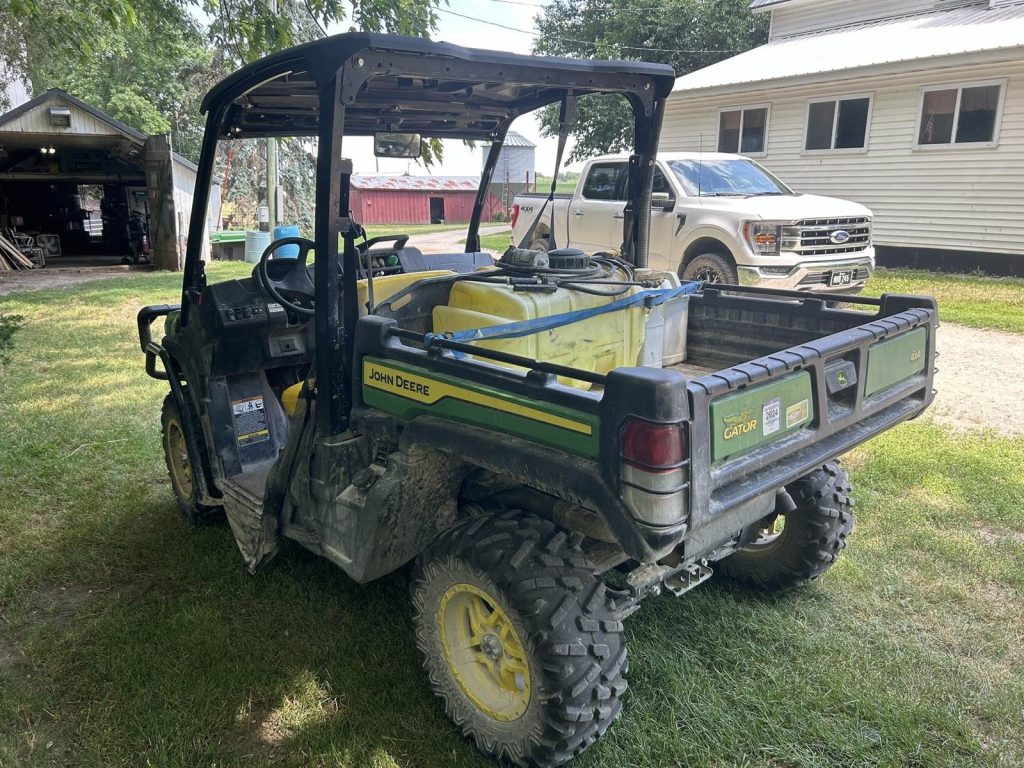

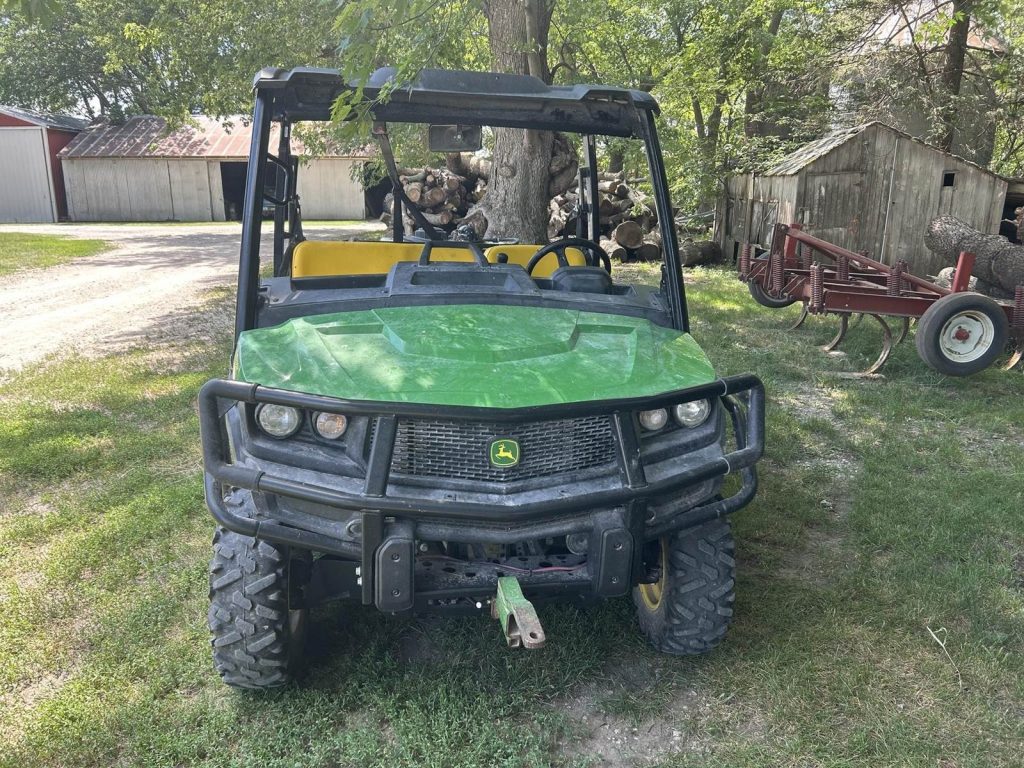

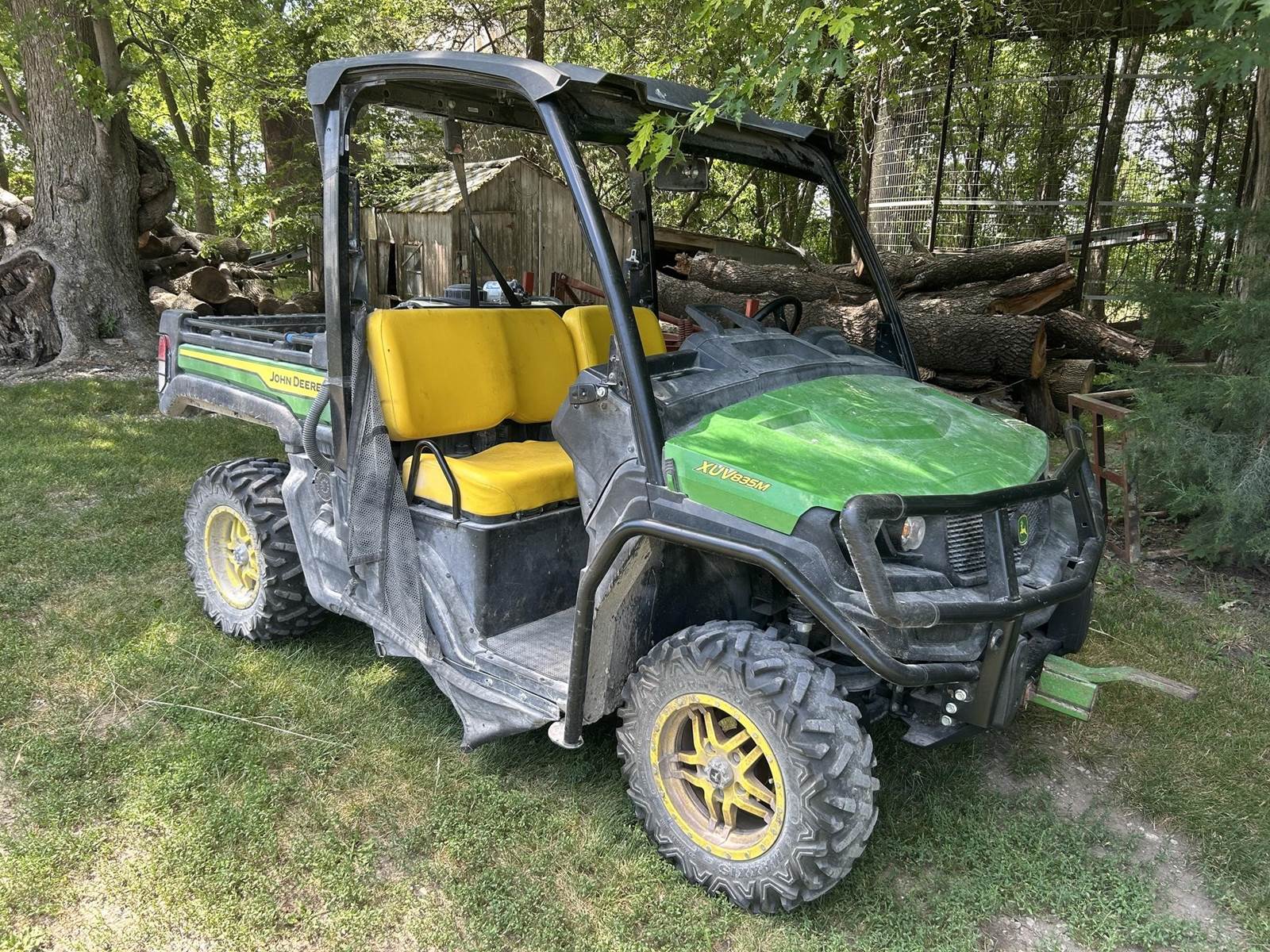

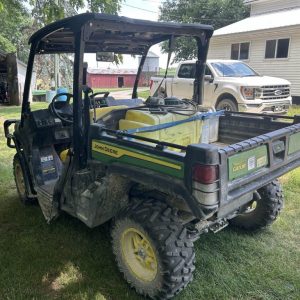

John Deere GATOR XUV 835M ATV. Discover the John Deere Gator XUV 835M, a 54-horsepower, 812-cc EFI utility vehicle with 4-wheel independent suspension, a full-size cargo box (1,000-pound capacity), and up to 4,000 pounds of towing. Ideal for both business and fun. Whether on or off-road, the Gator XUV provides memorable driving pleasure and optimum productivity. Its strong features and advanced technologies provide safety and comfort regardless of the challenges you throw at it. This utility and work vehicle was designed to provide excellent support for both ordinary duties and adventurous trips.

With the Gator XUV, you will always be prepared, no matter where your journey takes you. Feel free, be productive, and enjoy every ride—on and off the road. John Deere GATOR XUV 835M ATV

Engine: 812 cc (49.6 cu in) 3-cylinder, liquid-cooled, four-cycle gasoline with EFI. Power rated at ~40.3 kW (54 hp).

Transmission/Drivetrain: Continuously Variable Transmission (CVT) with clutch enclosure; selectable high/low, neutral, reverse. Standard 4-wheel drive with dash switch and rear differential lock.

Suspension: Fully independent dual A-arm front and rear. Front travel approx. 203 mm (8 in), rear travel approx. 229 mm (9 in) in the “M” trim. Ground clearance roughly 284 mm (11.2 in). John Deere GATOR XUV 835M ATV

Cargo Box: Dimensions approx. 1,143 × 305 × 1,320 mm (45 × 12 × 52 in). Rated capacity: 454 kg (1,000 lb).

Towing Capacity: Up to 1,814 kg (4,000 lb) in appropriate trim/configuration.

Dimensions & Weight: Wheelbase 2,146 mm (84.5 in). Length ~3,228 mm (127 in). Width ~1,618 mm (63.7 in). Height ~1,981 mm (78.0 in) (varies with optional roof/cab). With fuel & fluids weight about 868 kg (1,913 lb).

Fuel Capacity: Approx. 42.4 L (11.2 U.S. gal). Buy John Deere Gator XUV 835M

Seating: 3-person bench seat (40/60 split), with adjustable tilt steering and operator-platform designed for bulky work boots.

Tires/Wheels (example): Front 27×9-R14 Maxxis® Bighorn® 2.0 Extreme Terrain radials; Rear 27×11-R14. Available steel or alloy wheels. John Deere XUV 835M price

Additional Features: Power steering (in M and R trims), digital instrument display, multiple storage compartments (dash bins, under-seat, glove box), one-hand tailgate, optional power-lift cargo box, optional roof/cab/doors/heater.

Versatile Work Horse: The XUV 835M is capable of handling large loads, difficult terrain, and towing up to 4,000 pounds with a cargo box rated at 1,000 pounds.

Comfort and Utility Come Together: It is appropriate for both business and leisure due to its three-passenger cockpit, tilt steering, and ample legroom. Heavy boots and rough use are accommodated by the operator platform.

Terrain-Ready: When things go nasty, 4WD and rear diff-lock guarantee traction, while full independent suspension and 11.2 in ground clearance offer a smooth ride.

Smart Design Features: A utility vehicle’s user experience is enhanced with dash switches for 4WD and diff lock, a CVT with integrated engine braking, and controls reminiscent of those found in cars. Best utility side-by-side for farm and ranch work

Sturdy Construction: High-capacity alternator (85 amp) for accessories, enclosed CVT belt for extended life, composite cargo box that resists rust and dents.

Options for customization: The car can be tailored to your needs with regard to tire selections, color schemes (Green/Yellow, Olive & Black, TrueTimber camo), and extras like doors, roofs, windshields, and air conditioning. John Deere Gator XUV 835M top speed
